Power
Max. Power – 27 kW (37CV), Max. Torque – 50 Nm.
Weight
126 kg1
Max Speed
80 mph / 128 kph
SAFETY

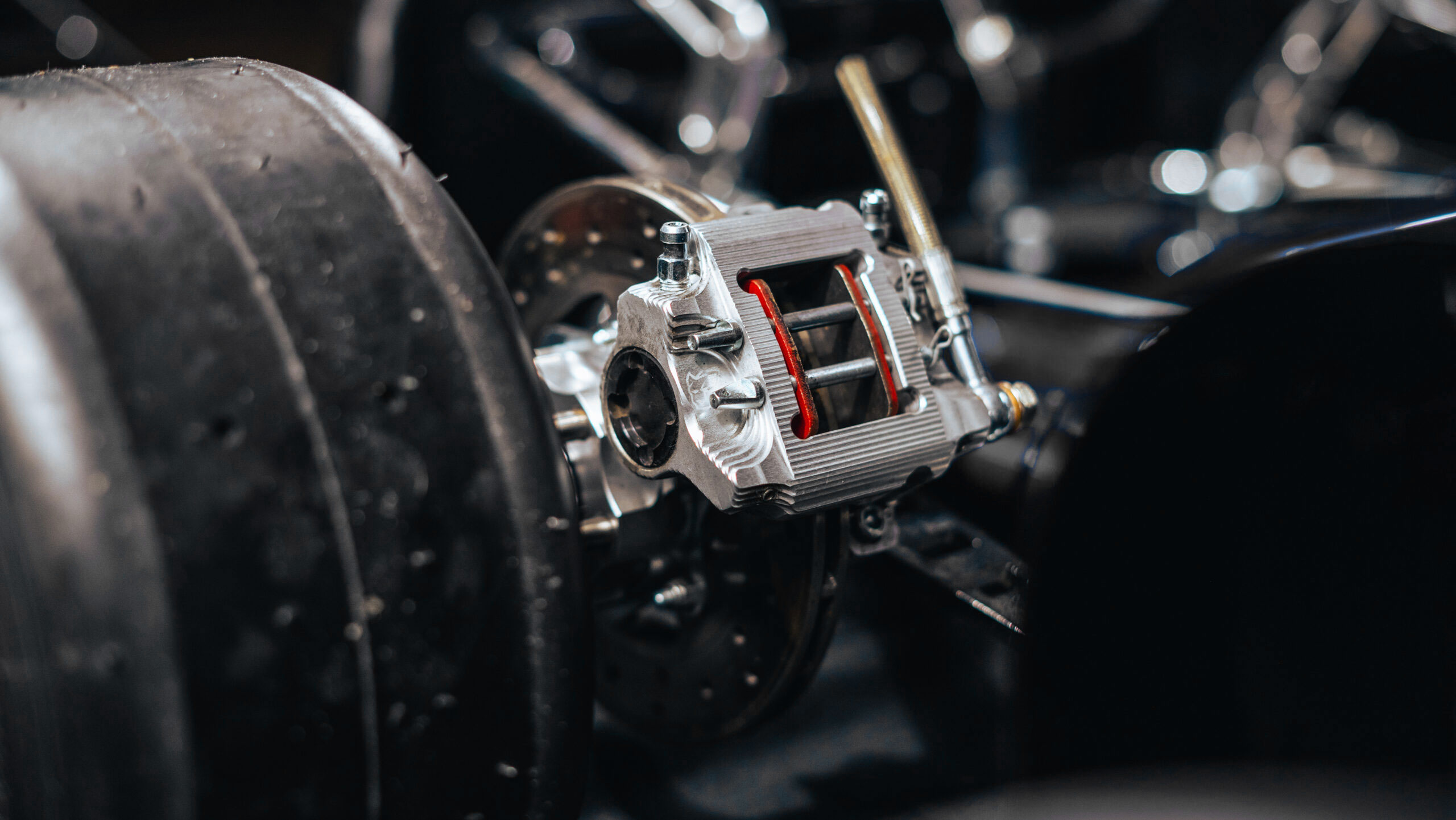

Hydraulic Brake System
w/ Ventilated Discs
Adjustable front-to-rear bias.
SAFETY
Hydraulic Brake System
w/ Ventilated Discs
Adjustable front-to-rear bias.
POWER

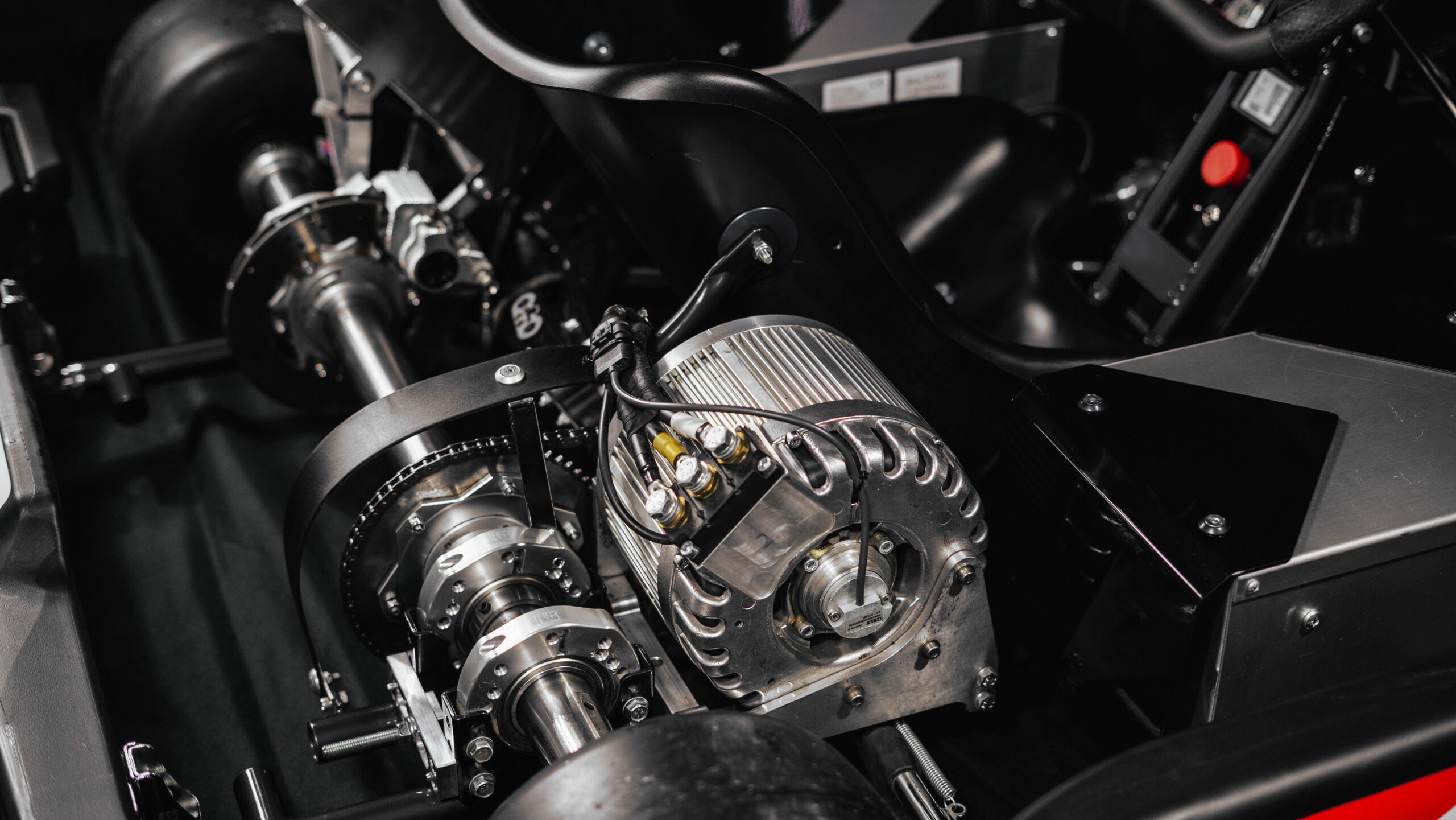

Asynchronous, 3-Phase
27 KW (37CV) Motor
Batteries – 88V 57Ah (5,0 kWh)
OPTIONS
Lots of Options
to Choose From
Add your personal touches.
OPTIONS
Lots of Options
to Choose From
Add your personal touches.
Batteries and Charging
Lithium ion batteriy units are produced and configured exclusively for E-Pro-Kart use. The range of the kart is approximately 20 minutes, depending on power or gearing selected.2 Fully discharged, the batteries can be recharged in as liittle as 20 minutes.3
Specifications
| Category | Electric, Direct Drive |
| Homologation | CIK/FIA |
| Tube Diameter | 32mm |
| Length | 1930mm |
| Width | 1350mm |
| Height | 530mm |
| Wheel base | 1070mm |
| Chassis | Fixed FR torsion-bar, Adjustable RR torsion-bar |
| Axle Diameter | 50mm |
| Brake System | Hydraulic, 2-piston FR, 4-piston RR |
| Brake Disk Diameter F/R | Floating - 13 inch/11 inch |

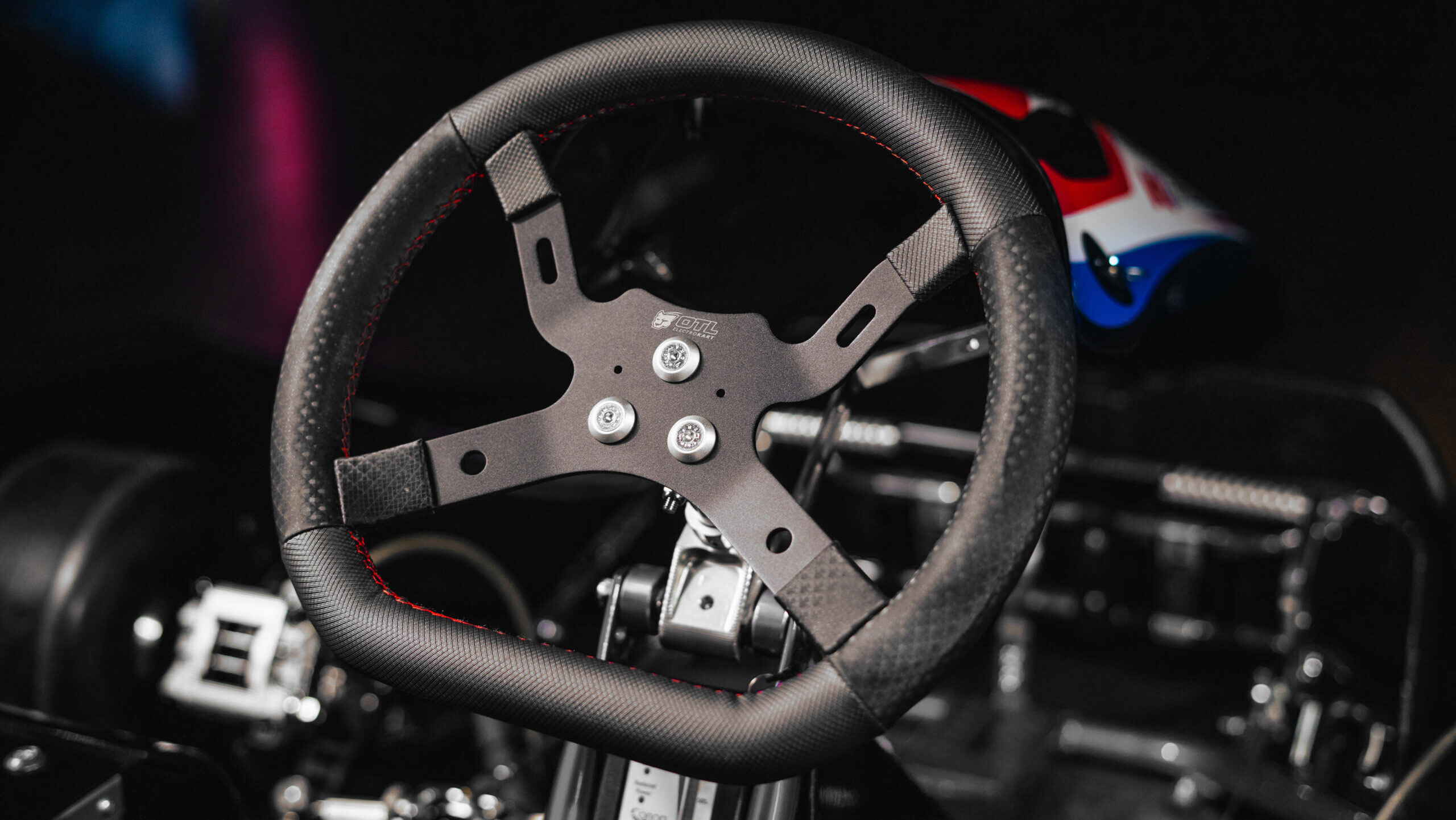

| Steering Wheel | 340mm |
| Rear Hubs | Magnesium |
| Wheels | Magnesium |
| Seat | Resin |
OTL E PRO KART
1 Based on factory configuration. Excluding any options.
2 Based on max power settings using factory gear sets.
3 Based on 480v commercial charge unit. Other charge options available.
Pre-production model shown. Some features and components may have changed prior to production.
